DAQMaster

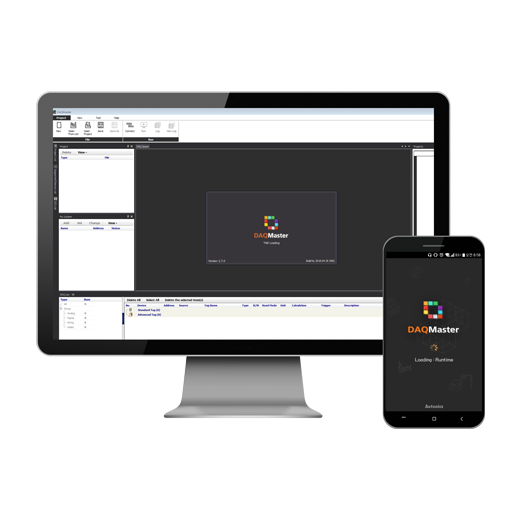

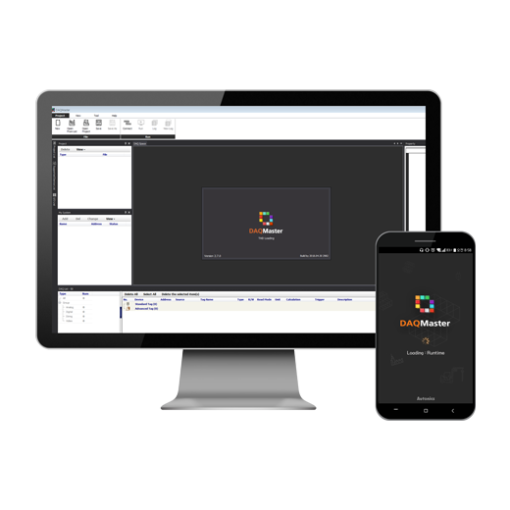

DAQMaster is a comprehensive device management program used to configure parameters, monitor real-time data, and store data with communication supported devices from Autonics. Simple GUI control allows easy and convenient management of parameters and data monitoring of multiple devices. DAQMaster is available in Standard (free) and Pro (paid) versions for PCs. DAQMaster Mobile is available for mobile devices.

Categories: ,

Description

※ All features of the DAQMaster software will be available for use for 30 days after installation. After the trial period, Pro version features will be locked without the purchase of a paid license.
The software must be registered with a paid license and serial key within 30 days of installation to maintain Pro version features.
※ The DAQMaster Pro version license can be activated with the purchase of the DAQMaster Pro USB license dongle. Please refer to the terms of the license registration before use.
※ DAQMaster Mobile v2.0.0 is temporarily unavailable for download at the Google Play Store due to distribution policy.
If you would like to download the software, please visit the download page at the Autonics website.



DAQMaster Standard / Pro Version Common Features

  • Multiple device support
  • Scan for devices
  • Simple graphic user interface
  • Project management
  • Data analysis using grids or graphs
  • Log monitoring data
  • Edit tag formulas
  • Print Modbus Map Table report
  • Lua script support
  • Multi-language support (English, Korean, Japanese, Chinese-Simplified/Traditional)

    DAQMaster Mobile is only available in English, Korean, and Chinese-Simplified/Traditional

DAQMaster Pro Version Features

  • Modbus device editor
  • Trigger event, scheduler
  • Action (SMS, e-mail, etc.)
  • Push server (Android, iOS support)
  • Database management
  • TCP/IP server
  • OPC DA server/client
  • OPC UA client
  • MQTT (publisher, subscriber)
  • DDE server/client
  • Fieldbus master
  • Modbus master/slave
  • Virtual tag (tag combination)
  • Manage user privileges

DAQMaster Features by Version

  • (■) : Updates (added or changed features) are highlighted.

Product DAQMaster DAQMaster Pro DAQMaster Mobile
Version v3.4.0 v3.4.0 Android: v2.0.0
iOS: v2.0.0
Type Free O X O
Paid License X O X
USB Dongle X O X
O/S PC O O X
Mobile Android X X O (8.0 and above)
iOS X X O (12.0 and above)
Web X X X
Runtime Screen Panel Flash X X X
SVG O O X
Vector Font X X O
Multi-Panel Flash X X X
SVG X X X
Vector Font O O O
Grid O O O
Line Graph
Bar Graph O
Color Map Graph X
Gauge Graph O
Histogram Graph X
Alarm History Grid X
Basic Features GUI O O O
Data Monitoring
Set Parameters
Project Management
Multiple Device Support
Scan for Devices
Lua Script Support
Log Monitoring Data X
Edit Tag Formulas
Print Modbus Map Table Report
Expansion Features Data Analysis ddf Grid O O X
Graph
Alarm Spread
Analysis Spread
Database DB Grid
DB Graph
Utility (Tool) Modbus Device Editor X O X
Script Editor
Scheduler O
Trigger Event O
Virtual Tag(Tag Combination) O
Manage User Privileges O
Action Log Start X O X
Log Stop
Send to Telegram
Play Alarm Sound
Tag Error Message
Tag Alarm
Tag Output O
SFTP O
Print Report O
SMS O
E-Mail O
Realtime Log CSV O O X
SQL Oracle X O
SQL Server
MySQL
DB2
SQLite
PostgreSQL
InterBase
Nexus DB
Firebird
Sybase ASE
Sybase ADS
MS Access
DBF
Advantage
NoSQL Mongo DB O
Protocol TCP/IP Server Monitoring X O X
Security (Login) O
Security (Protocol) X
Read Tag O
Write Tag O
OPC DA 1.0(Format) X O X
2.0(Format) O
3.0(Format) O
Server O
Client O
AE 1.0(Format) X O X
1.10(Format) O
Server X
Client O
UA TCP(Format) X O X
HTTP(Format) O
HTTPS(Format) O
Server X
Client O
DDE CF_Text(Format) X O X
XL_Table(Format) O
Advanced DDE(Format) X
FastDDE(Format) X
SuiteLink(Format) X
Server O
Client O
WMI Manager X O X
Push Server Android O
iOS O
Database Middleware Server O
MQTT Publisher X O X
Subscriber O X
Fieldbus Master (Hilscher PCI) ProfiBus X O X
ProfiNet O
EtherCAT O
EtherNet/IP O
DeviceNet O
Fieldbus Master (Mitsubishi PCI) CC-Link X O X
Fieldbus Master CC-Link IE Field Basic X O X
Modbus Master RTU O O X
TCP X
ASCII X
Modbus Slave RTU X O X
TCP O
ASCII O
DAQMaster Mobile Features DAQMaster Client Function Monitoring O
Read/Write Parameters O
(DAQMaster Pro v3.4 and higher)
Read All Parameters for Registered Devices O
Horizontal Screen Support O
Backup/Restore Project Files Google Drive O
DAQMaster Push Alarm Function Android O
iOS O
(DAQMaster Pro v3.4 and higher)
Supported Devices AUTONICS MT4 O O O
TF3
THD
TK4
TM2
TM4
TX
ARM
CT
MP5
BFC O
DS(A)-xT X
DS-RRT
MP5W
MP5Y
SCM-USU2I
SCM-WF48
TZ/TZN
SPR1 O O O
SPR3 O O O
PSM O O X
TMH O O O
(except TMH-C)
ARIO O O X
DPU (1-Phase) O O O
DPU (3-Phase) O
KN-2000W O
KRN50 O
KRN100 O
KRN1000 O
KPN X
Multi-Language Support English O O O
Korean O
Chinese Simplified O
Traditional O
Japanese X

DAQMaster Standard / Pro Version Common Features

  • Multi-Device Support

    • – Simultaneously monitor multiple devices and configure parameters
    • – Simultaneously connect multiple units with different addresses within the same device
    • – Multiple RS232 ports are available with Modbus RTU communication

  • Scan for Devices

When multiple units with different addresses are connected, unit address scan function can be used to search for units automatically.

  • Project Management

Save added device information, data monitoring screen layouts, I/O source selection, etc. as project files. Opening a project file will automatically load the saved settings. Project list is created for easier project file management.

  • Data Analysis

Data analysis feature allows data files (*.ddf) to be converted into grids or graphs. The information can be saved in *.rtf, *.txt, *.html, or *.csv files from the data grid screen.

  • Log Monitoring Data

While monitoring data can be logged and saved into DAQMaster data files (*.ddf) or CSV files (*.csv). The saved CSV file can be opened directly onto Excel spreadsheets. Define log data file naming rules destination folders for easier file management.

DAQMaster Pro Features

  • Database Management

Information can be changed to database using database management systems (Access, MySQL, SQL Server, SQLite) in real-time, allowing easy creation and management of various databases.

  • Real-Time Logging

Log files are automatically created and saved as CSV files at user specified times.

  • Modbus Device Editor

Add and monitor status of any Modbus devices which are not included on the default list.

  • MQTT (Message Queuing Telemetry Transport)

Collected data can be published to broker or subscribed to broker using MQTT protocol.

  • OPC DA (Data Access)

The OPC Specifications are based on the OLE, COM, and DCOM technologies developed by Microsoft to facilitate interoperability of applications. If offers industry standard mechanism for communication and data transfer between client and servers.

  • OPC UA (Unified Architecture)

The unified architecture is a standard communication protocol to transmit data from sensors or PLCs. Data can be collected through various OPC UA servers through OPC UA protocol.

  • Dynamic Data Exchange (DDE) Client

Dynamic Data Exchange is a method of interprocess communication under Microsoft Windows which allows sharing of information between applications. This function uses shared memory and provides a common protocol to applications.

PC System Requirements (DAQMaster / DAQMaster Pro)


Item Minimum specifications
Hardware IBM PC compatible computer with Intel Pentium Ⅲ or above
Operating System Microsoft Windows 98/NT/XP/Vista/7, 8, 10
Memory 256 MB+
HDD 1GB+ of available hard disk space
Display Resolution: 1024×768 or higher
Additional RS232C serial port (9-pin), USB port

System Requirements (DAQMaster Mobile)


Item Minimum specifications
Version Android version 8.0 or higher, iOS 12.0 or higher
Rating Rated for 3+
Permissions Read/edit/delete files from storage
All internet features when connected to Wi-Fi

The DAQMaster Pro version license can be activated with the purchase of the DAQMaster Pro USB license dongle.


Model Number of Tags
DAQ-000-USB Unlimited





Title Type Size
DAQMaster

Catalog

application/pdf 405 KB
DAQ Master User Manual

User manuals

application/pdf 10 MB
DAQ Master Mobile User Manual

User manuals

application/pdf 656 KB
DAQ Master Tutorial, Technical Support Manual

Technical Manuals

application/pdf 3 MB
