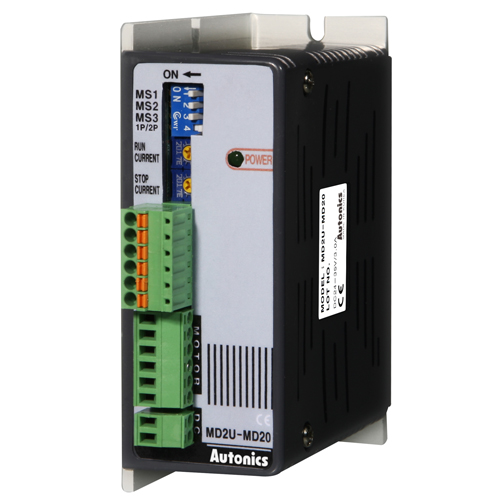

MD2U-MD20

The 2-phase stepper motor drivers MD2 Series are compact, high performance devices offering precise and accurate driving. The MD2U-MD20 Series stepper motor drivers feature microstep driving, with RUN current setting up to 2.0A/Phase, and DC power control.

Description

Features
* Unipolar constant current drive type
* Enable to brake when it stops by STOP current adjustment
* Low speed and precise control with microstep (MD2U-MD20)
* Insulate using photocoupler to minimize the influence by external noise
* Power supply: 24-35VDC

Title Type Size
MD2 Series (CE Mark) application/pdf 188 KB
Stepper Motors / Stepper Motor Drivers / Motion Controllers Selection Guide application/pdf 6 MB
MD2U-MD20 | MD2U-MD20 Series application/pdf 749 KB
MD2U-MD20 Series application/pdf 434 KB
MD2U Series application/pdf 759 KB
Stepper Motors & Drivers & Controllers (Applications) application/pdf 508 KB
Stepper Motors & Drivers & Controllers (Technical Description) application/pdf 582 KB
5-Phase Sepper Motor And Driver (Specifications) application/pdf 532 KB
MD2B-GD30 Series application/pdf 401 KB
MD2U Series application/pdf 1 MB
