Description
※ CJ series cables have been upgraded to CH/CO series.
- Diverse cables available for connection to various PLCs and controller
- Customizable cable arrangement
- Diverse cable lengths for various user requirements
- Customizable branching cable types
-
Customizable Cable Arrangement

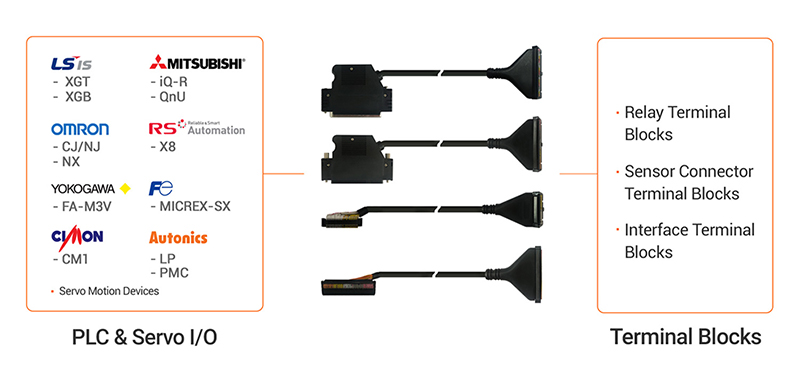

The cable arrangement can be customized to support connection to various PLC and servo I/O devices.
※ For detailed information, refer to “Cable Selection and Connection Table” from the cable catalog.
Various Connector and Cable Types Available
Various connector and cable types including open cable type and branching cable type are available for diverse user applications.
-
CO Series (Open Cable Type)

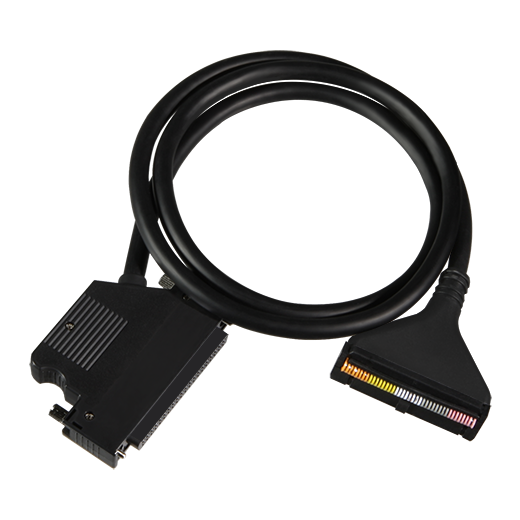

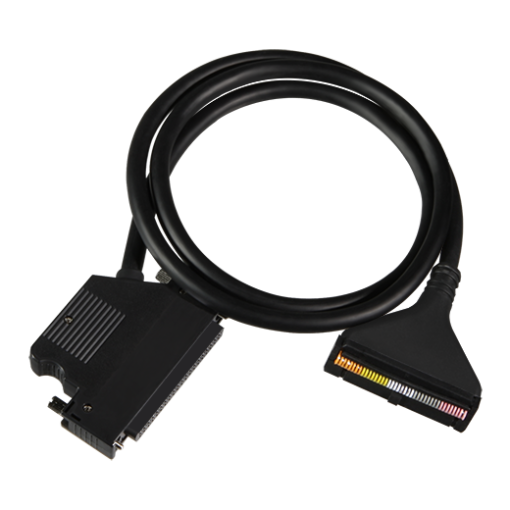

PLC Connector Model Appearance Hirose 20Pin Plug CO20-HP■-□
MDR 20Pin Plug CO20-MP■-□
D-SUB 37Pin Plug CO37-DP■-□
D-SUB 37Pin Socket CO37-DS■-□
Hirose 40Pin Plug CO40-HP■-□
Fujitsu 40Pin Plug CO40-FP■-□
Hirose 50Pin Plug CO50-HP■-□
MDR 50Pin Plug CO50-MP■-□
-
CH Series (Single Branch Cable Type)
PLC Connector Terminal Block Connector Model Appearance Hirose 20Pin Plug Hirose 20Pin Plug CH20-HP■-□
Hirose 40Pin Plug Hirose 40Pin Plug CH40-HP■-□
Fujitsu 40Pin Plug Hirose 40Pin Plug CH40-FP■-□
D-SUB 37Pin Plug Hirose 40Pin Plug CH37-DP■-□
D-SUB 37Pin Socket Hirose 40Pin Plug CH37-DS■-□
MDR 20Pin Plug Hirose 20Pin Plug CO20-MP■-□
MDR 50Pin Plug Hirose 50Pin Plug CO50-MP■-□
MDR 50Pin Plug Hirose 50Pin Plug CO50-MQ■-□
-
CH Series (Double Branch Cable Type)
PLC Connector Terminal Block Connector Model Appearance Hirose 40Pin Plug Hirose 20Pin Plug CH40-HP■-□-2S
CH40-HP■-□-2L
Fujitsu 40Pin Plug Hirose 20Pin Plug CH40-FP■-□-2S
CH40-FP■-□-2L
D-SUB 37Pin Plug Hirose 20Pin Plug CH40-DP■-□-2S
CH40-DP■-□-2L
D-SUB 37Pin Socket Hirose 20Pin Plug CH40-DS■-□-2S
CH40-DS■-□-2L
Hirose 20Pin Plug Hirose 40Pin Plug CH40-HP■-□-YS
CH40-HP■-□-FS
